dlorp v0.1.0

An orthographic Vulkan renderer for Brickadia saves. Open a .brdb world or a .brz prefab and fly the camera around it.

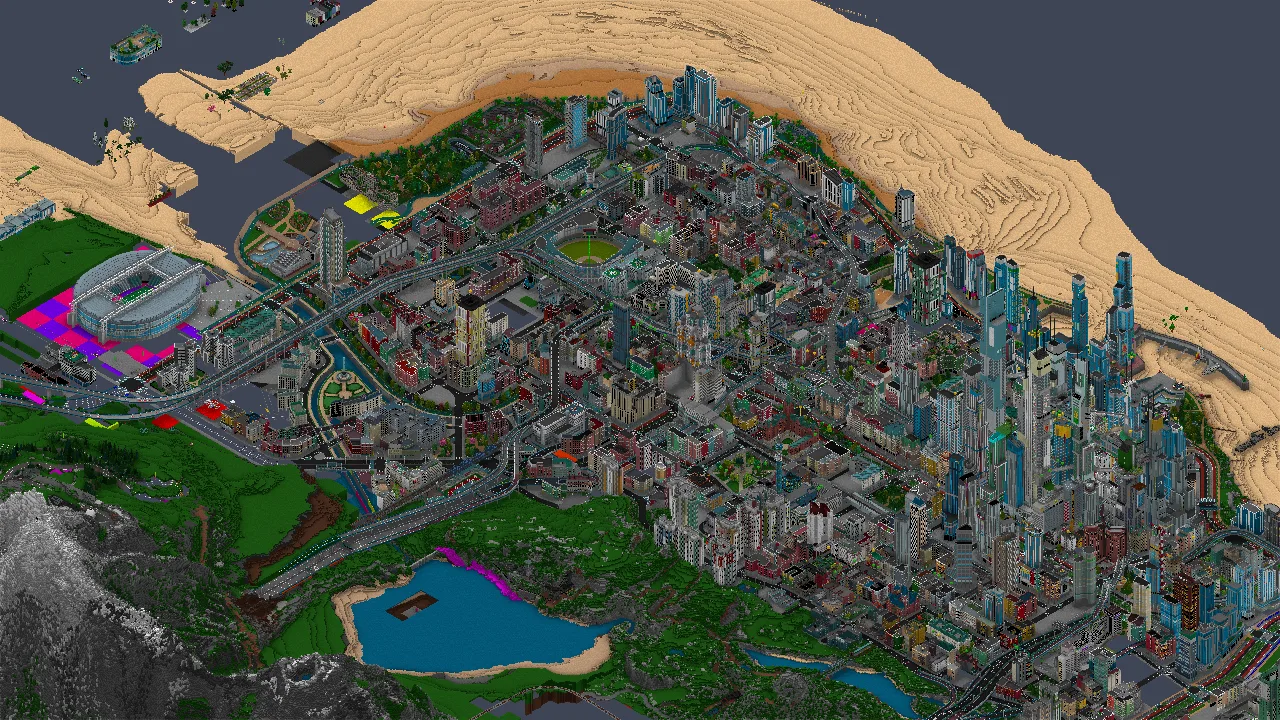

Brickadia City by Dingo Ananas, 9.5 million bricks, ssao shading.

Download

Windows	dlorp-windows-x86_64.exe (4.8MB) 64-bit. One file, no installer.
Linux	dlorp-linux-x86_64 (1.5MB) 64-bit. `chmod +x` and run it.

Features

Handles big builds. A 9.5 million brick city loads in about two seconds on my machine.
Five shading modes.
Loads saves from the escape menu, which browses your Prefabs, Worlds and Downloads folders.
Takes its own screenshots with --screenshot, and renders without a window with --headless.
Scriptable over stdin with --control, so you can render a camera move frame by frame and hand it to ffmpeg.

TODO

Lights
Materials
Shadows
Entity debugging

Shading modes

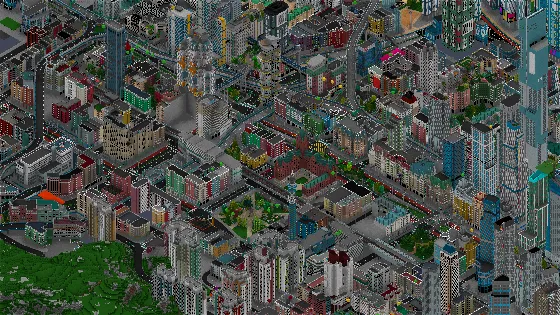

basicone directional light	ssaoambient occlusion

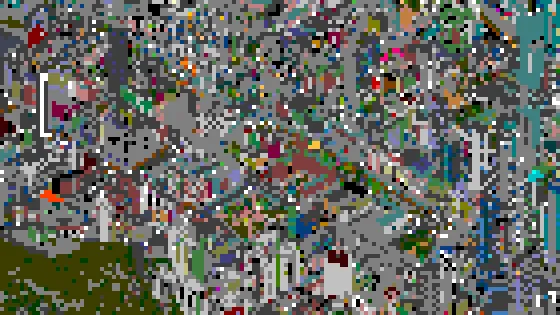

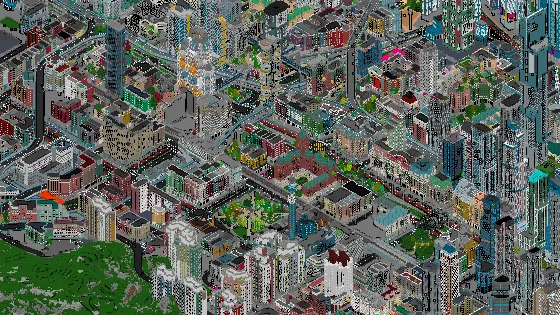

toonbanded light and ink	retroquarter resolution, 5 colour levels

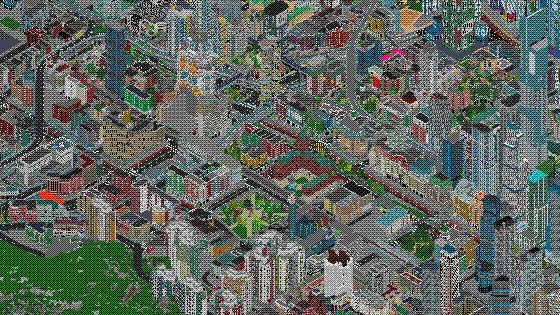

ditheredthe same palette, dithered

Controls

`W A S D`	pan across the ground plane
`space` / `ctrl`	raise and lower the point being looked at
`Q E` / `R F`	orbit / tilt
`-` `=`	zoom out and in
`shift`	move four times as fast
left drag	pan
right drag	orbit
wheel	zoom
`escape`	open the menu. Arrows and enter to navigate, escape to back out.

Command line

dlorp --save some.brz
dlorp --save world.brdb --shader ssao --size 1920x1080

`--save PATH`	.brdb world or .brz prefab to draw
`--shader NAME`	basic, retro, dithered, toon or ssao
`--size WxH`	window and render size (default 1280x720)
`--speed X`	multiply every key-driven camera rate
`--headless`	render with no window
`--screenshot PATH`	write a PNG of the last frame before exiting
`--frames N`	stop after N frames (0 = until closed)
`--fixed-step HZ`	advance the camera 1/HZ per frame instead of by the wall clock
`--control`	read commands from stdin, one per line
`--dump-bricks`	print every brick in the save and exit
`--help`	the full list, including the control commands

Rendering a 10 second pan to a video:

{ echo 'key d down'; echo 'key e down'
  for i in $(seq -w 1 600); do
      echo 'frame 1'
      echo "screenshot /tmp/pan/$i.png"
  done
  echo quit
} | dlorp --save "$SAVE" --headless --size 1920x1080 \
      --shader ssao --fixed-step 60 --control

ffmpeg -framerate 60 -pattern_type glob -i '/tmp/pan/*.png' -crf 18 pan.mp4

--fixed-step ignores the clock, so a rendered sequence plays back at a constant speed however long each frame took to draw.
